Cisco ASA5515-K9 Overview
Cisco ASA 5515-X supports Active/Active and Acitve/standby failover to enable the firewall redundancy. It delivers up to 1.2 Gbps stateful inspection throughput, 250 IPsec VPN peers, 250,000 concurrent connections and 1 expansion slot, which makes it ideally suited for the small, mid-size enterprises or branch offices.
Quick Specs

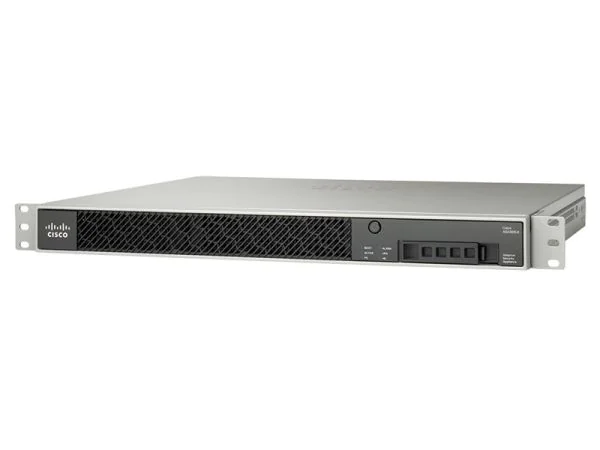

Figure 1 shows the appearance of ASA5515-K9.
Table 1 shows the Quick Specs.
| Product Code | ASA5515-K9 |
| Interfaces | 6 copper GE ports, 1 copper GE management port |
| Stateful inspection throughput (multiprotocol) | 600 Mbps |
| Maximum 3DES/AES VPN throughput | 250 Mbps |
| IPsec site-to-site VPN peers | 250 |
| Virtual interfaces (VLANs) | 100 |
| Memory | 8 GB |
| Flash | 8 GB |
| Height (rack units) | 1 RU |
| Dimensions (D x H x W) | 4.24 x 42.9 x 39.5 cm |
| Package Weight | 13.1 Kg |
Product Details
Figure 2 shows the front panel of ASA5515-K9.
Notes:
| ① | Power button |
| ② | Front Panel LED |
| ③ | Hard-disk release button |
Table 2 shows the Front Panel LEDs’ descriptions.
| LED | Color | Description |
| BOOT | Flashing green | Power-up diagnostics are running, or system is booting. |
| Solid green | System has passed power-up diagnostics. | |
| Off | Power-up diagnostics are not operational. | |
| ACTIVE | Solid green | Failover pair is operating normally. |
| Off | Failover is not operational. | |
| PS | – | Power supply status |
| ALARM | Off | Normal operating system function. |
| Solid amber | Critical Alarm indicating one or more of the following:
–a major failure of a hardware or software component. –an over-temperature condition. –power voltage is outside of the tolerance range. |
|
| VPN | Solid green | VPN tunnel is established. |
| Off | No VPN tunnel established. | |
| HD | Flashing green | Proportioned to read/write activity. |
| Solid amber | Hard-disk drive failure. | |
| Off | No hard-disk drive present. |
Figure 3 shows the back panel of ASA5515-K9.
Note：
| ① | Back Panel LED: Power, Alarm, Boot, Active, VPN, HD0, HD1 | ④ | Power supply |
| ② | Console port | ⑤ | GigabitEthernet data interfaces (0/0 through 0/5) |
| ③ | USB Ports | ⑥ | Management 0/0 interface |
·The GigabitEthernet interface connects with an RJ-45 cable and must be restricted to management use only
Compare to Similar Items
Table 4 shows the comparison of ASA5506-K9, ASA5508-K9 and ASA5515-K9.
| Models | ASA5506-K9 | ASA5508-K9 | ASA5515-K9 |
| Interfaces | 8 x 1 GE | 8 x 1 GE | 6 GE Copper |
| Stateful Inspection Throughput
(multiprotocol) |
300 Mbps | 500 Mbps | 1.2 Gbps |
| Maximum 3DES/AES VPN Throughput | 100 Mbps | 175 Mbps | 250 Mbps |
| Memory | 4GB | 8GB | 8GB |
| Flash | 8GB | 8GB | 8GB |
| Height (rack units) | Desk Top | 1 RU | 1 RU |
