Cisco ISR4351-AX/K9 Overview
Cisco 4351 Integrated Services Router, which supports 3 Network Interface Modules (NIM) slots, delivers 200 Mbps to 400 Mbps aggregate throughput. ISR4351-AX/K9 is the Cisco ISR 4351 router with AX Bundle w/ APP.SEC license.
Quick Specs

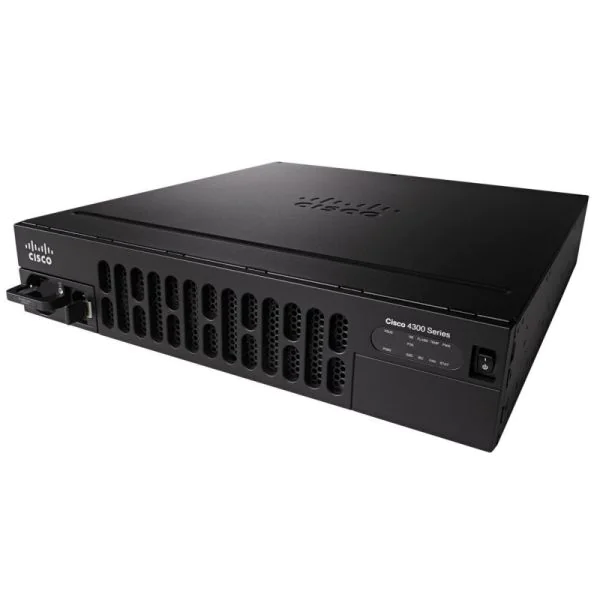

Figure 1 shows the appearance of Cisco ISR4351/K9 for reference. ISR4351-AX/K9 is similar with it.
Table 1 shows the Quick Specs.
| Product Code | ISR4351-AX/K9 |
| Aggregate Throughput | 200 Mbps to 400 Mbps |
| Total onboard WAN or LAN 10/100/1000 ports | 3 |
| RJ-45-based ports | 3 |
| SFP-based ports | 3 |
| Enhanced service-module (SM-X) slot | 2 |
| NIM (Network Interface Modules) slots | 3 |
| Onboard ISC slot | 1 |
| Memory | 4 GB (default) / 16 GB (maximum) |
| Flash Memory | 4 GB (default) / 16 GB (maximum) |
| Power-supply options | Internal: AC, DC (roadmap), and PoE |
| Rack height | 2 RU |
| Dimensions (H x W x D) | 43.9 x 438.15 x 507.2 mm |
Product Details
Figure 2 shows the front panel of Cisco ISR4351/K9 for reference. ISR4351-AX/K9 is similar with it..
Note:
| ① | Power supply unit | ③ | Router power On/Off switch |
| ② | Router fan tray | ④ | LEDs |
·The router fan tray is hidden behind the removable bezel.
·LEDs include ten indicators.
Figure 3 shows the back panel of Cisco ISR4351/K9 for reference. ISR4351-AX/K9 is similar with it..
Note:
| ① | USB Type A port | ⑦ | SFP port (GE 0/0/0) |
| ② | GE management port | ⑧ | RJ-45 port (GE/0/0/2) |
| ③ | USB Type B mini port | ⑨ | NIM slots |
| ④ | Auxiliary port | ⑩ | Ground connection |
| ⑤ | Console port | ⑪ | Enhanced Service Module (SM-X) slot |
| ⑥ | RJ-45 port (GE 0/0/1) | ||
·The NIMs support 2 single-wide or 1 double-wide.
The Modules, Cards, Licenses & Accessories
Table 2 shows some recommended modules, cards, licenses and several cables.
|
Items |
Models |
Descriptions |
|
Console and Auxillary Cables |
Cisco CAB-AUX-RJ45 Auxiliary Cable 8ft with RJ45 and DB25M |
|
|
Cisco Router Cable CAB-ETH-S-RJ45 |
||
|
Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F |
||
|
Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B |
||
|
Licenses |
Cisco AppX license L-SL-4350-APP-K9= with 1300 conns/ISRWAAS or vWAAS for ISR4351 |
|
|
Network Interface Modules |
Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module |
|
|
Cisco Multiflex Trunk Voice and WAN network interface module |
||
|
Analog voice network interface card (ear and mouth) |
||
|
Cisco Analog voice network interface card NIM-2FXS |
||
|
Cisco Analog voice network interface card NIM-2FXS/4FXO |
||
|
Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module |
||
|
SFPs for On-Board GE Ports |
Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
|
|
Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM |
||
|
Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM |
Compare to Similar Items
Table 3 shows the comparsion chart.
|
Models |
ISR4351-AX/K9 |
|
|
Description |
Cisco ISR 4351 AX Bundle w/ APP.SEC lic |
Cisco ISR 4351 (3GE,3NIM,2SM,4G FLASH,4G DRAM,IP Base) |
|
Aggregate Throughput |
200 Mbps to 400 Mbps |
200 Mbps to 400 Mbps |
|
Total onboard WAN or LAN 10/100/1000 ports |
3 |
3 |
|
RJ-45-based ports |
3 |
3 |
|
SFP-based ports |
3 |
3 |
|
Enhanced service-module slots |
2 |
2 |
|
NIM slots |
3 |
3 |
|
Onboard ISC slot |
1 |
1 |
|
Rack height |
2 |
2 |
